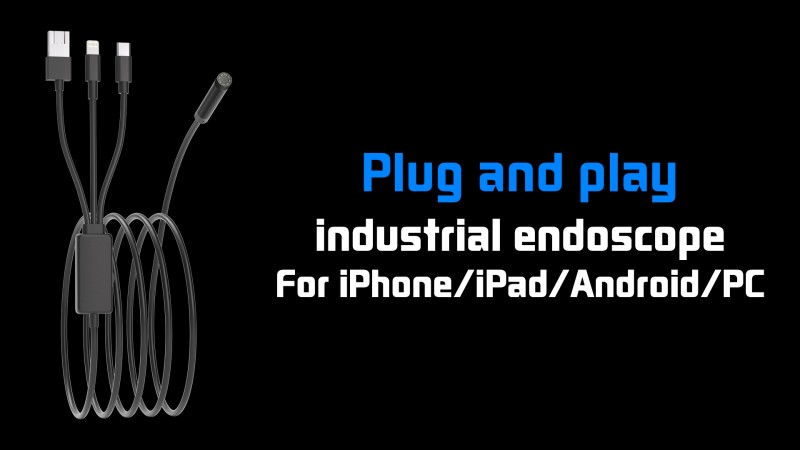

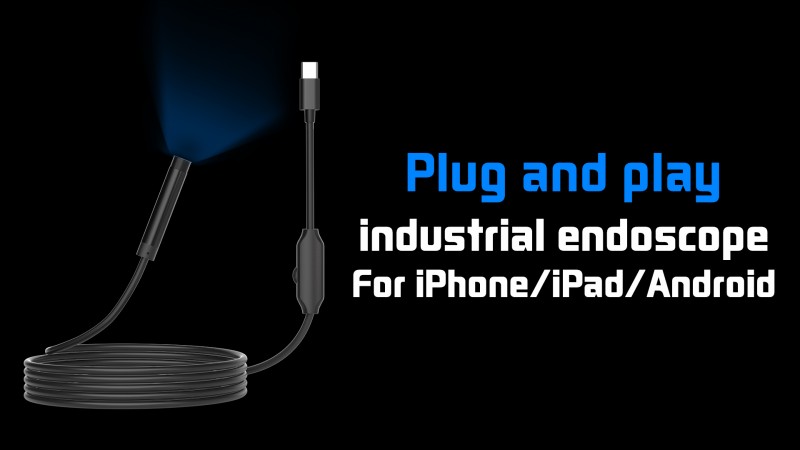

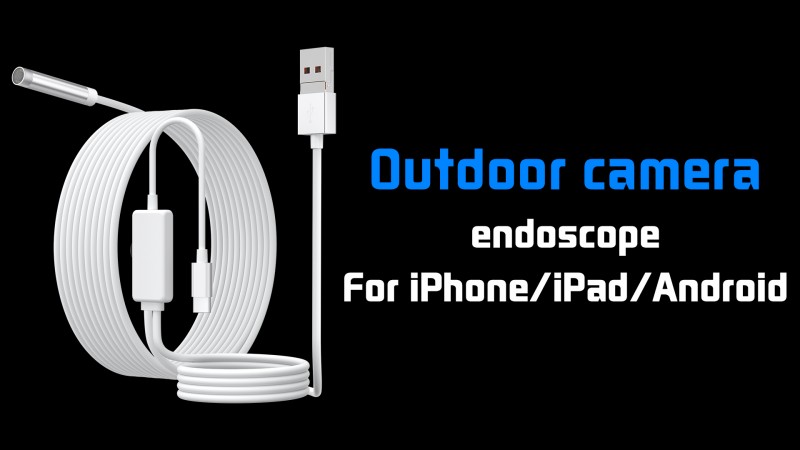

Lightning/Type-C 2-in-1 Industrial Endoscope
Leveraging China's leading R&D team and advanced production processes, ZOIOT has launched the Lightning/Type-C 2-in-1 Industrial Endoscope. Compatible with the full range of Apple devices (including Type-C models like the iPhone 15/16 and traditional Lightning devices) and mainstream Android phones and tablets, it's compatible with iOS 12 and later and Android 6.0+. Equipped with a 200W high-definition pixel and an 8-LED stepless dimming system, it supports keyless photo and video recording, as well as magnification adjustment. Its slim 8.0mm aluminum tube probe penetrates complex industrial environments and is widely used in aerospace, automotive maintenance, pipeline inspection, and other fields. It accurately identifies internal wear and cracks in equipment, providing a cross-ecosystem compatible, professional-grade nondestructive testing solution for all device users.
Model:5003TC
Send Inquiry
Product Description
As a leading manufacturer in the industrial endoscope field, ZOIOT has crafted this Lightning/Type-C 2-in-1 Industrial Endoscope with exquisite craftsmanship and strict quality control. Focusing on "full system coverage + precise and convenient operation," it has become a "core visual inspection tool" for cross-device scenarios.
Product Specifications
Model: NK-5003TC
● Aluminum tube diameter: 8mm
● Lens frame rate: 30 FPS
● Lens focal length: 4-10cm
● Horizontal viewing angle: 76 degrees
● Waterproof rating: IP67
● Compatible devices: iPhone/iPad/Android/PC (Lightning port/iOS 12 or later)
● Cable length: 1m/2m/3m/5m (depending on the actual product)
● Operating voltage: DC 3.3-5V
● Exposure/gain control/white balance: Automatic
● Operating environment: 0°C-60°C
● Output: 1920*1080
Five core advantages directly address the pain points of inspection scenarios:
IP67 waterproof, rock-solid in extreme environments: The lens has undergone rigorous waterproofing testing and can withstand immersion in 1m of water for 30 It remains operational for 10 minutes, ensuring peace of mind when inspecting plumbing, equipment leaks, or in damp, dark environments. This eliminates the need to worry about water damage, ensuring a more secure inspection process.
8 LEDs with stepless dimming provide powerful illumination with comprehensive coverage: 8 high-brightness LEDs provide light intensity and coverage far exceeding traditional specifications, instantly piercing even dim cavities and clearly illuminating shadowed corners within complex structures. Stepless dimming provides precise control, reducing brightness to prevent glare in bright sunlight. Combined with a full-device color optimization algorithm, images are rendered with true-to-life detail, significantly improving inspection accuracy.
Integrated button operation for one-handed control: Equipped with independent photo/video buttons and support for adjusting the magnification lens, inspections can be completed with one hand, eliminating the need for frequent screen scrolling. The entire "observe - zoom - record" process can be completed with one hand. For example, if a suspected crack is discovered during auto repair, pressing the zoom button allows for closer inspection, and then pressing the photo button freezes and saves the image, doubling on-site efficiency. Full system compatibility, compatible with both new and existing devices: Deeply optimized for new Type-C models like the iPhone 15/16, older Apple devices, and mainstream Android systems, it features instant recognition with zero lag upon connection and is fully compatible with the latest versions of all operating systems. Inspection images can be annotated and shared directly on the device, and multi-platform cloud synchronization allows for team collaboration without the need for separate tools for different devices.
Extreme durability, adaptable to extreme working conditions: The slim 8.0mm probe easily penetrates tight spaces with a diameter of 10mm or more, enabling in-depth inspections from automotive engine cavities to air conditioning ducts, mechanical bearings, and the interior of walls, becoming an "industrial-grade third eye" for users of all devices.
Whether inspecting corrosion in underwater pipes with an iPhone 16, identifying mechanical faults in oily environments with an Android tablet, or troubleshooting hidden dangers in damp corners with an older Apple device, this two-in-one direct-connect endoscope delivers "IP67 waterproofing, high-definition vision, full system compatibility, and easy operation" for precise, efficient, and effortless inspections.
